Little Lightmap Tricks October 10th, 2017

Just a quick post today to write down some lightmap lessons I've learned over the years, inspired by Ignacio CastaƱo's post on his iOS optimizations for The Witness. Many years ago I helped a little on the Wii port of "Call Of Duty: Modern Warfare", and it reminded me of the "fun" I had rewriting the lightmap system to fit into that. So I thought I'd write up some of the little tips and tricks I picked up along the way. Nothing special here, just some common mistakes to avoid.

Don't put gaps in!

You don't need pixel gaps between each chart.

It's surprisingly common to see people generating lightmaps with empty pixels in-between each chart. You don't need to do this! Put them right up against each other without any gaps. If you're worried that maybe you needed the black pixel to stop the charts bleeding into each other, then you're calculating your UVs wrong.

Squish blocks down

Many charts are all the same color -- squish them down.

If all the pixels in the chart are exactly the same color (or near-enough), you don't need to waste space storing all of them. Just shrink the entire chart down to a single pixel. And furthermore (see below), use the same single pixel for all of the shrunken charts.

Share identical charts

Share UVs for identical charts.

You might imagine that the majority of a lightmap's space is taken up by nice big chunky pieces, like open terrain areas, or the sides of buildings. But in fact, you'll find that probably the majority of the lightmap space is occupied by a thousand little tiny shards of rubbish. Many of these only occupy a single 2x2 or 3x3 block on the lightmap. Now if you think about it, there's only so many 2x2 blocks that can exist in the world. So:

For each chart, search for all previous charts that are the same size and have the same contents (within a given pixel error). If you find any, throw the new chart away and simply re-use the UVs of the old one.

You might even find that this doesn't just work for little 2x2 blocks. If there's any instanced geometry in the level that's facing the same direction, then they'll often have identical lightmaps too. One example would be the side of an apartment block, with many balconies. Because the sun is a directional light, each balcony will have the same shadow cast onto it. So you can get chart re-use in a lot more places than you'd think.

Don't ruin your block compression

Don't let empty pixels ruin your compression for you.

You can get a big benefit by using a block compression scheme for your texture (DXT/BC/etc). But don't just compress your texture without thinking first! DXT stores two colors for each 4x4 block. The pixels you didn't write to on the lightmap will be an empty black. Do you really want to waste one of those colors on storing black? Of course you don't.

For each 4x4 block, fill in the unused pixels with one of the other pixels from the same block (doesn't really matter which).

Visual debugging

One of the really cool things I did was to write a little visual debugger -- a small command-line parameter that would pop open an OpenGL window showing the results of the bake. You could fly around and inspect the results, and if you found a strangely black triangle somewhere, you could click on it, and the program would re-run the lighting for that triangle and automatically break into the debugger at the right location. I highly recommend this.

The scheme I used

I tried a lot of texture compression schemes out, but here's the one I finally settled on. Bear in mind we were super-tight on memory, so I didn't want to use anything more than 4-5 bits per pixel really.

Like its parent 360/PS3 versions, the Wii port of COD:MW uses a non-HDR lighting engine where the sun's shadow is stored off as a separate lightmap channel. This allows partial time-of-day changes, special effects like lightning flashes, and also allows the total lighting brightness to exceed 1.0, allowing some overbrightening. I really wanted to keep that scheme for the Wii port, but I didn't want to use any more memory.

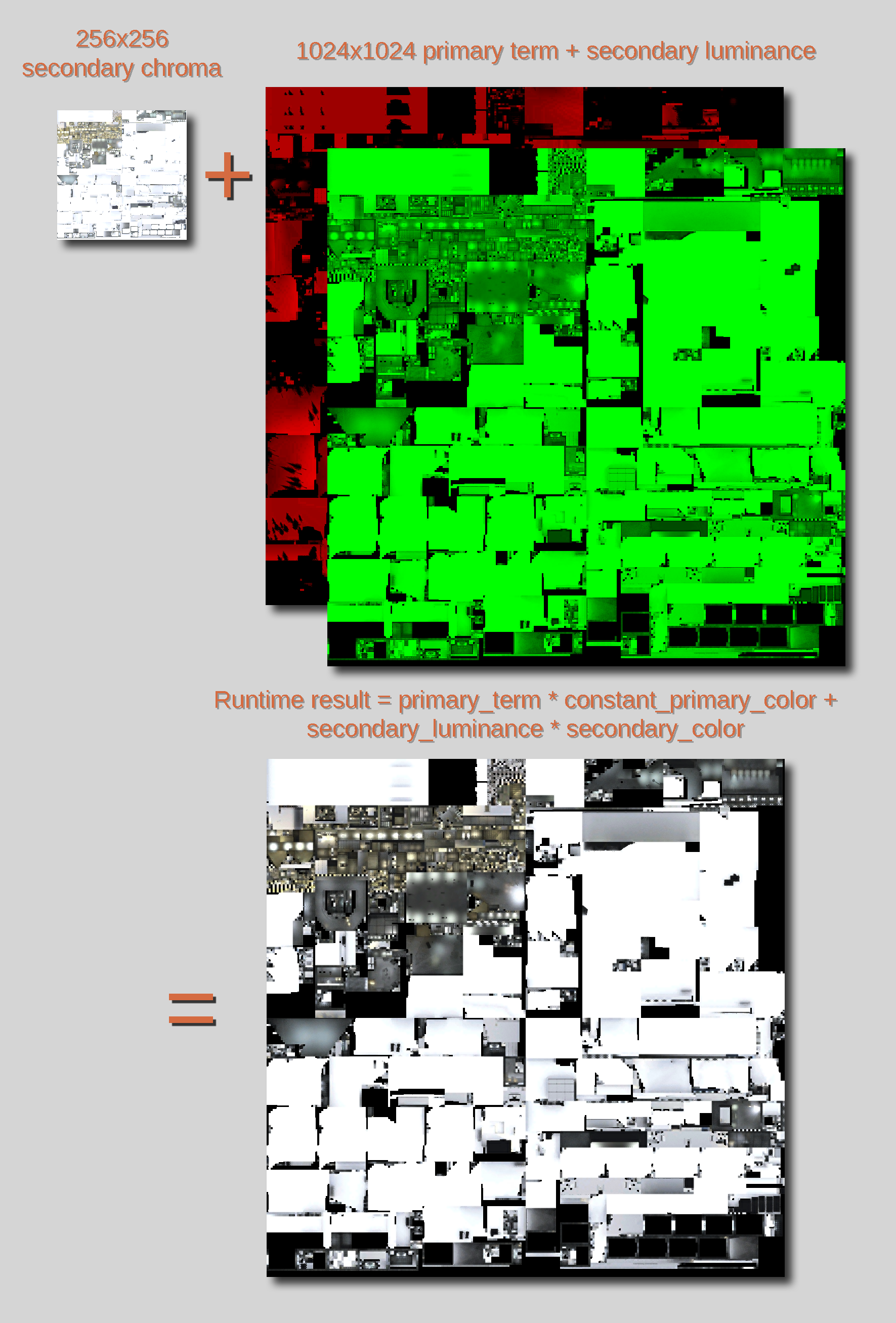

The shadow term is stored at full resolution, in the red channel of a DXT1 texture. This consists of the shadow visibility multiplied by the N.L term. This is then blended at runtime with the actual sun color.

The remaining non-sun light is stored a little differently. I split the secondary light into its separate components -- luminance and color. A separate RGB(565) texture stores the color, at quarter resolution. The luminance is stored at full resolution into the green channel of the above full-resolution texture. At runtime, we simply read both textures and multiply them together.

Now, you have to be careful about this. DXT compression relies on correlation between the channels -- you can't just throw any old data into the separate RGB channels and expect it to compress well.

But it turns out that for our purposes, this works great. It tends to be that each area of the world only has one strong light affecting each point (either the primary sun or one of the secondary lights), so the DXT compressor is free to EITHER:

a) If the shadow term is mostly constant, focus its efforts on the secondary luminance. Or, b) If the shadow term varies, focus on that and let the luminance suffer.

It tends to work out either way though. The human eye is drawn to brightness, so if the luminance gets bad compression then you're probably looking at an area that has strong, varying shadows, and that'll be the thing that stands out anyway. And of course, when you throw the diffuse texture on top it hides a lot of any remaining errors.

Because the quarter-res 16bpp texture has 1/16th the pixels of the high-res 4bpp texture, the total storage space is effectively 5 bits-per-pixel.


Well there you go. Nothing that special, but it's nice to write these things down sometimes so they don't get lost. Of course, it's all voxel GI these days so I don't expect this to be of much use, but there it is.

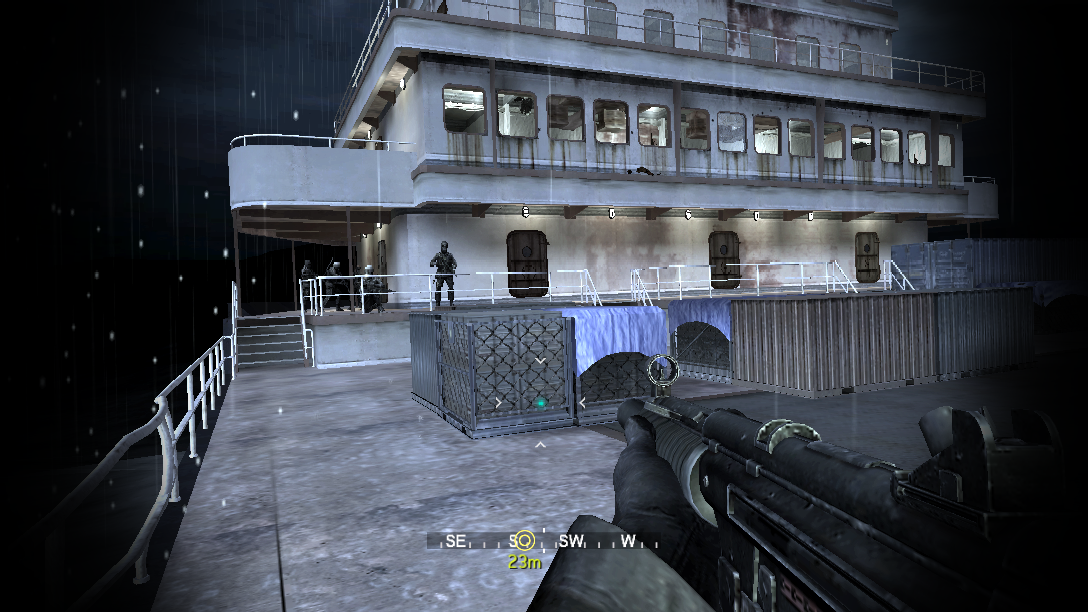

COD:MW Reflex -- Flashes of lightning were achieved by messing with the sun brightness at runtime.
